Specifikacija
Osnovne karakteristike

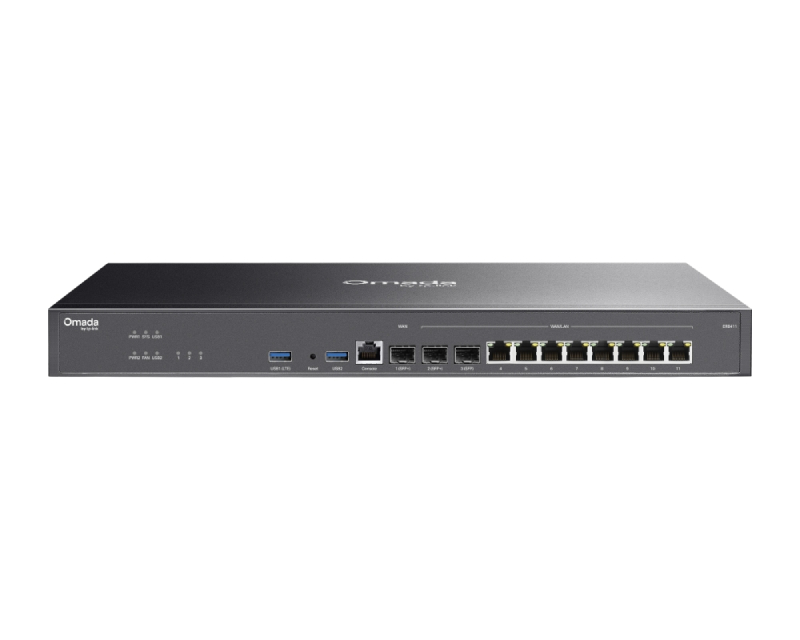

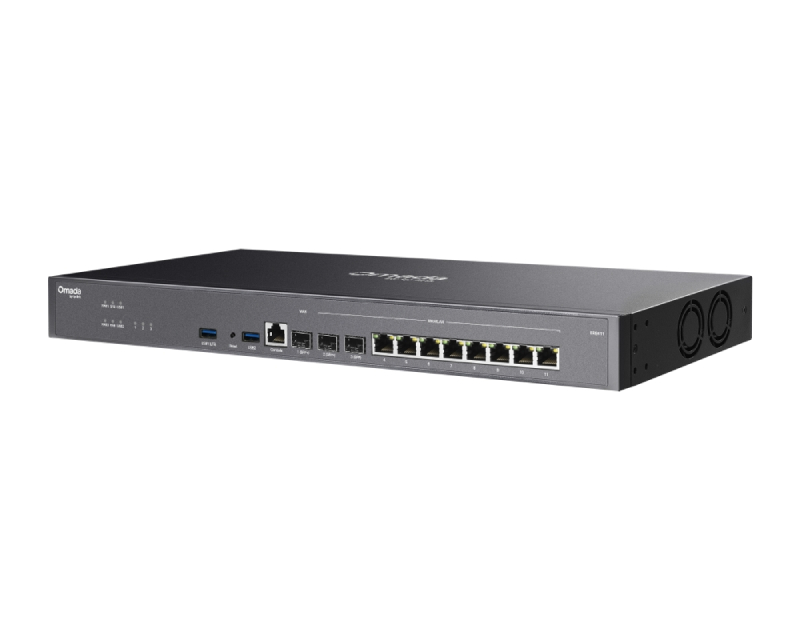

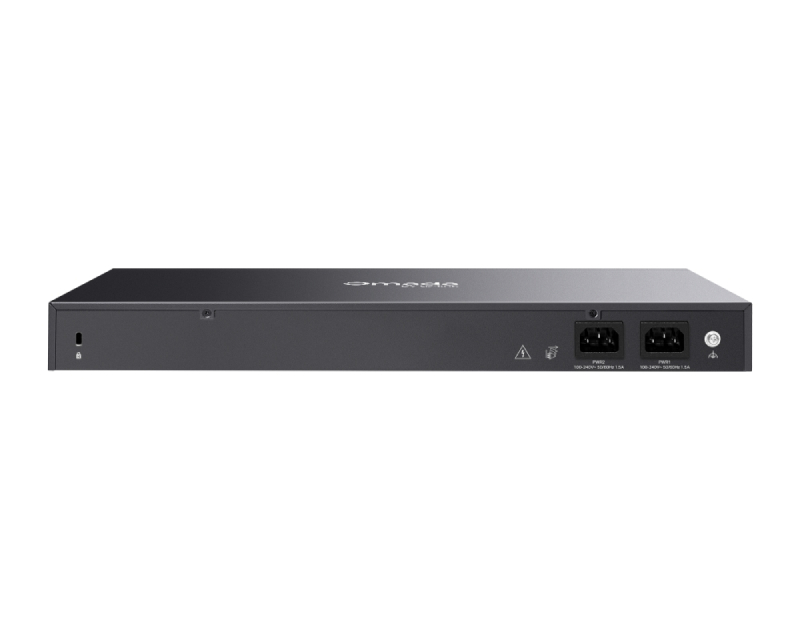

| Tip | Ruter, Gateway |
Žična mreža
| Standardi žične mreže | IEEE 802.1q (VLAN tagging) |
| Žični protok | 10/100/1000/2500/10000Mbps |
| Protokoli žične mreže | IPv4/IPv6, NTP, SNMP, DHCP, ICMP, NAT, PPPoE, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, DNS, UDP, RIP, OSPF, VLAN, LLDP, IGMP Proxy, GRE, SSL VPN, SD-WAN, 6to4 Tunnel |
| Forwarding | 64 Byte PFR 2,109,375pps / 2,011,719pps |
MAC adrese
| Ostalo | MAC Clone, IP/MAC Binding |
Zaštita
| AES | Da |
| Autentifikacije | RADIUS, ACL |
| Ostalo | DoS protection, DNS-over-TLS, Attack Defense (TCP/UDP/ICMP Flood Defense), Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN, Web Group Filtering, URL Filtering, Web Security, Access Control, ARP Inspection (Sending GARP Packets, ARP Scanning, IP-MAC Binding), IPsec VPN, PPTP VPN, L2TP VPN, OpenVPN, WireGuard VPN, Syslog Support, NAT Traversal (NAT-T), Perfect Forward Secrecy (PFS), 4kV surge protection, Web Authentication, Captive Portal, DPI, IDS/IPS, DNS Proxy |
Firewall
| NAT | Da |
| VPN Pass-through | Da |
| Ostalo | Port Trigger, Port Forwarding |
Priključci / Slotovi
| RJ-45 | 8x (10/100/1000Mbps) |
| Optički | 1x SFP, 2x 10G SFP+ |
| USB priključci | 2 |
| Ostali priključci / Slotovi | 1x Reset dugme, 1x RJ45 Console Port |
Memorija
| Interna | 4MB SPI NOR + 256MB NAND |
| RAM memorija | 4GB |
Ostalo
| Dodatne funkcije | Bandwidth Control, Reboot Schedule, Load Balance, IP-based Session Limit, NTP klijent, Static routing, Traceroute, Multi-IP Interfaces, Policy Routing, Multi-Net NAT, GRE |
| Podržane tehnologije | IPTV |
| Upravljanje | Omada App, Zero-Touch Provisioning, Cloud Access, Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Remote Management, SNMP, SNMP v3, SNMP v2C, Export & Import Configuration, Web Management Interface, NTP, Centralized Management, Captive Portal Configuration, Syslog |
| Ostalo | LED indikator, Sertifikati CE, FCC, RoHS, Operativna temperatura od 0°C do 40°C |
Fizičke karakteristike
| Dimenzije | 440mm x 220mm x 44mm |
| Materijal | Metalno kućište |
| Boja | Crna |
| Pakovanje | Naponski kabl, RJ-45 kabal, 1X QIG, Oprema za instaliranje unutar rack ormana |
Reklamacioni period
| Reklamacioni period | 24 meseca |
Deklaracija
| EAN | 4897098683309 |
| Šifra | LAN05143 |
